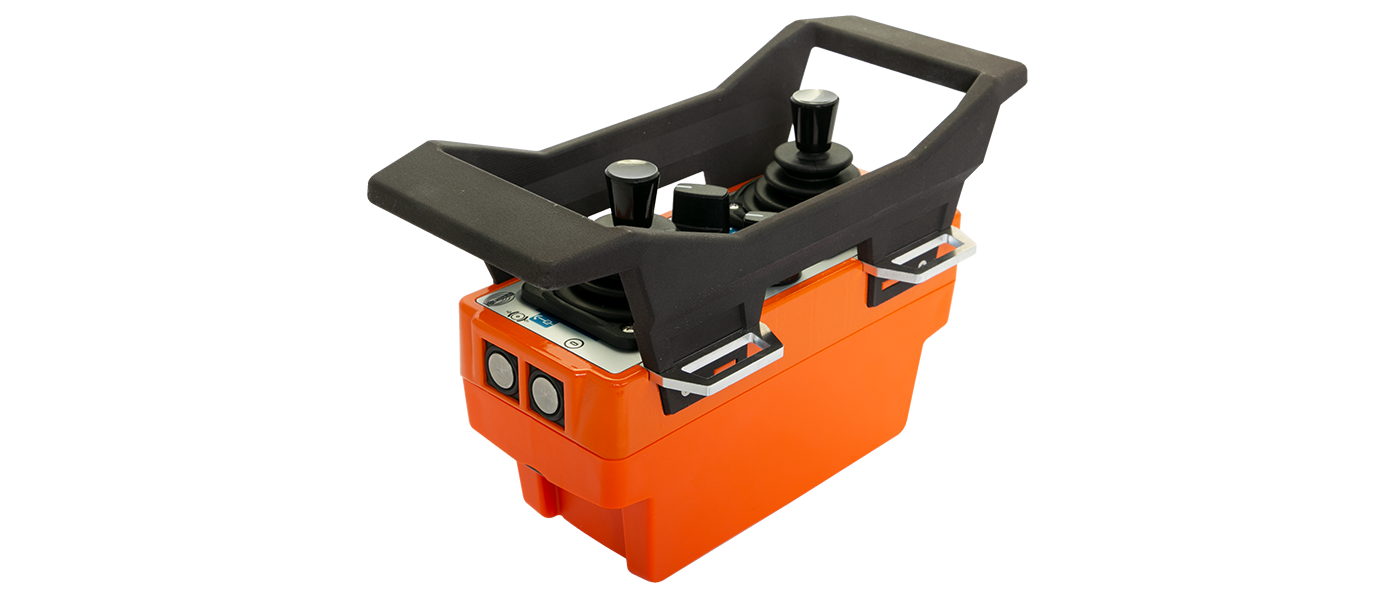

ECO, HBC-radiomatic

Operating elements & control functions

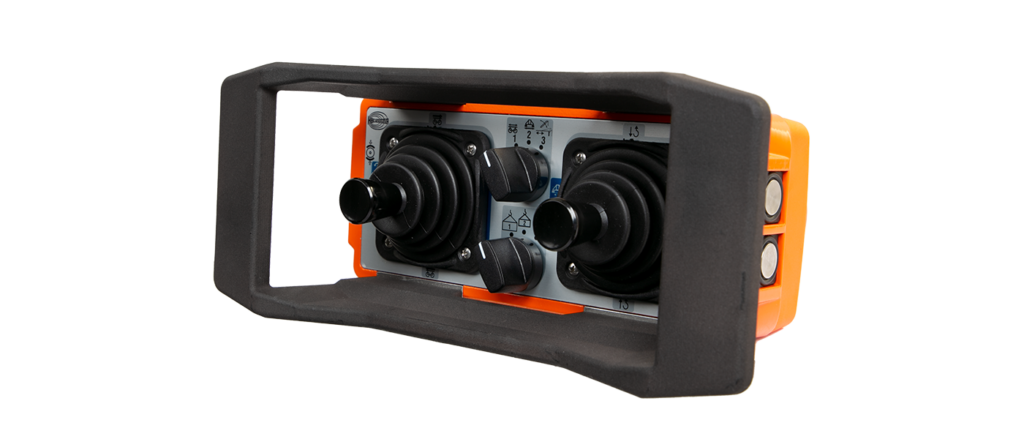

• Up to 2 joysticks
• 2 positions for push buttons, toggle switches and rotary switches (maintained / spring-return)
• STOP impact switch
• On the side: up to 4 push buttons
• Up to 16 control functions (on / off)
• Up to 4 analog functions

Optional:

• 2 buttons on the frontside of the transmitter to extend the range of commands

Battery technology

• Rechargeable NiMH exchange battery
• Continuous operating time: up to 14 hours

Indication

• LED for the indication of operating / battery status
• Acoustic signal to indicate low battery status
• Transmitter vibration to indicate low battery status

Protection from unauthorized use

Activation via HBC start sequence or merlin® TUC.

E-STOP

PL d category 3 according to EN ISO 13849-1:2015

Auto Power Off

Automatic deactivation of the transmitter after preset time without command input
(standard: 15 min)

Auto Movement Off

Automatic deactivation of movement functions after 5 min without command input.

radiomatic® AFS

= partially automatic

Adaptive Frequency Hopping

= fully automatic

DECT

= fully automatic

radiomatic® AFM

= fully automatic

country-independent use:

2402 - 2480 MHz

country-specific use:

1790 - 1930 MHz

country-specific use:

405 - 475 MHz
865 - 870 MHz
902 - 928 MHz
